Specialized In Converting & Packaging Equipment Manufacturing

BAGMAKING MACHINERY SOLUTIONS



SHCG-75U  JUMBO SIZE U Liner

 BOTTOM SEALING BAG MAKING MACHINE

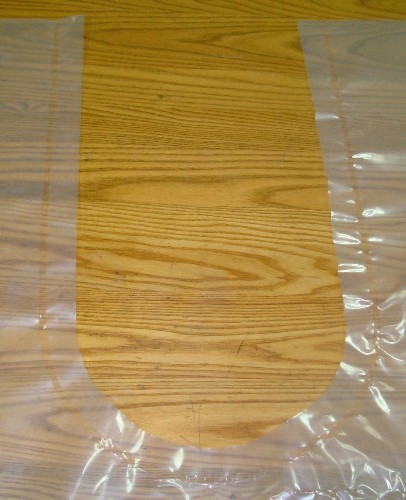

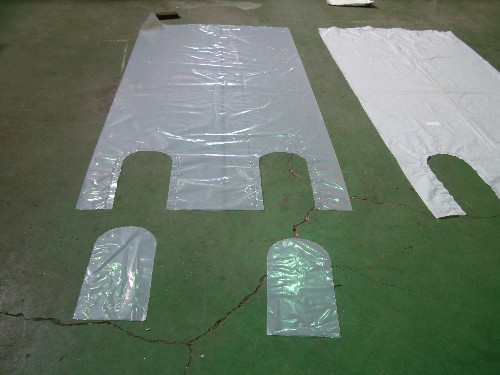

 U Liner Bag For FIBC Package





Special Future

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment




OPTIONAL EQUIPMENT

 Fly Knife Cutting Device

 Automatic Robot Arm for Folding

 Perforating Bag Making Device and Rewinding Device



SPECIFICATION

MODEL

MAX.WIDTH
 		MAX.LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHCG-90 2250 mm 4000 mm 0.035-0.15 mm ± 2 10 - 40 4.4 KW 5.0 KW 7.5 KW 450*292*180 1650 KG
SHCG-120 3000 mm 5000 mm 0.035-0.15 mm ± 2 10 - 30 4.4 KW 6.5 KW 8.2 KW 450*368*180 2100 KG
SHCG-135 3300 mm 6000 mm 0.045-0.25 mm ± 3 10 - 30 6.0 KW 7.5 KW 10 KW 550*410*200 3200 KG



Sing Siang Machinery Provide Great Diversity of Plastic Bag Making Machine
