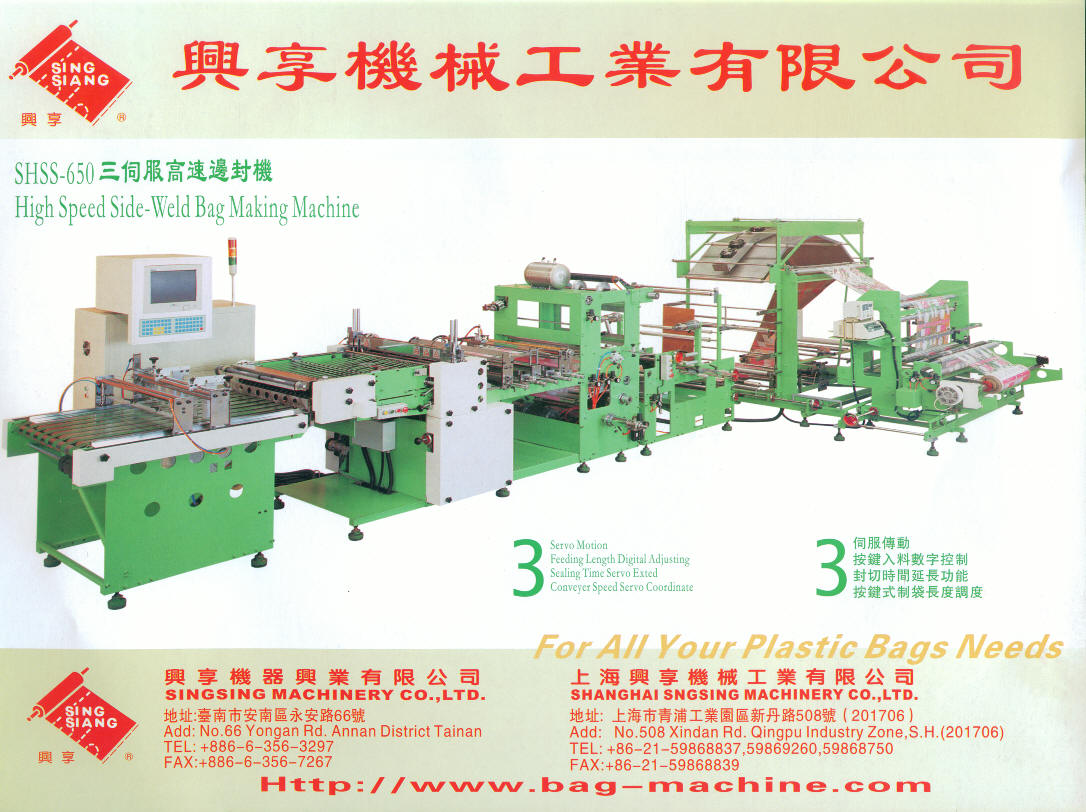

SHSS-650 High Speed   Universal Welding Machine for

Side Weld, bottom Weld & Double-Weld Bags







THREE INTERDEPENDENT SERVO CONTROL SYSTEM

One-servo for film feed drive

One-servo for heat-sealer vertical drive and

One-servo for catching drive

Special Features

 300 Shots/min.  Accurate registration, less waste

 Automatically stop when running out of film

Servo catching unit provides outstanding bag stacking

 Automatically stop when film feeding blocks or bags jam

 Sealing Blade Driven by Servo Motor System
(With functions for setting sealing time)

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



Imported high speed conveyor belt for long service life.



Convenient to change for various bag shapes.



Various unwinder and rewinder to meet requirements.





Ruggedly constructed for maximum stability during high speed operations.

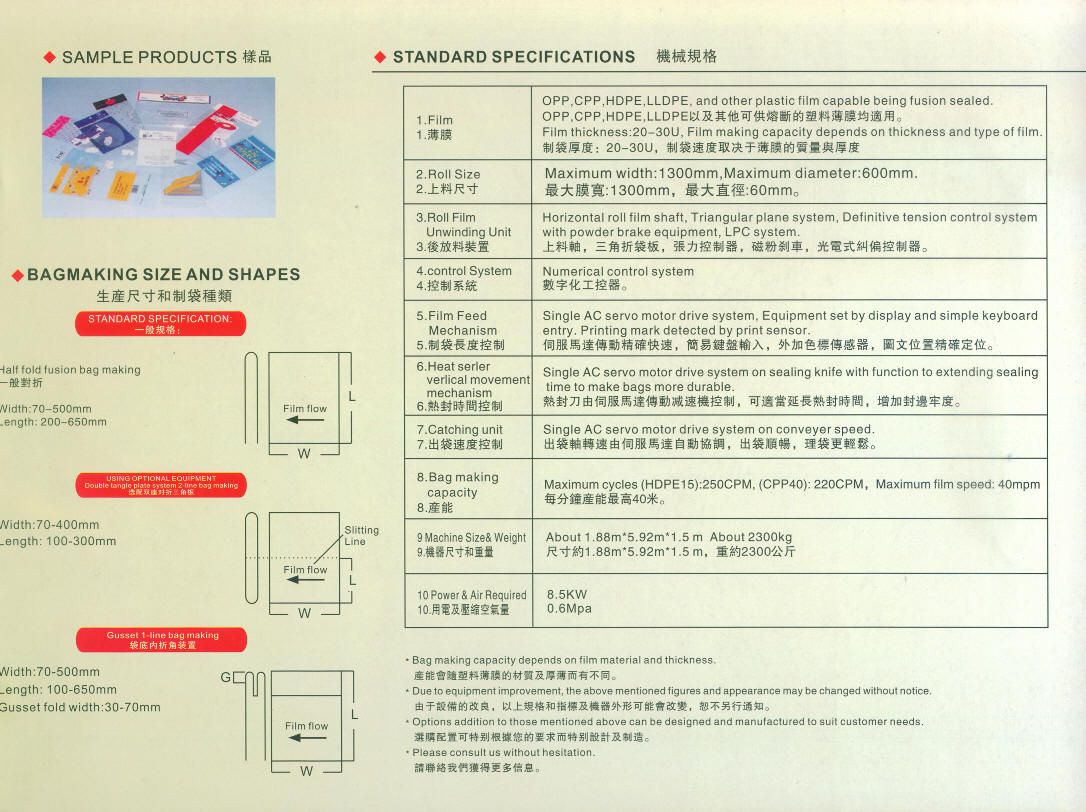

Standard Specification

1.Fikm

OPP, CPP HDPE, LLDPE, and other plastic film capable being fusion sealed.            Film Thickness : 20 to 100 micron *1

2.Roll Size Maximum width : 1400 mm,
Maximum diameter : 600 mm
3.Unwinding Unit Horizontal roll film shaft, Triangular plate system, Definitive tension control system, powder brake equipment. LPC System
4.Control System Numerical control system
5.Film feeding Servo MITSUBISHI Servo Pack
6.Sealing Blade Servo  MITSUBISHI Servo Pack , (With functions for setting sealing time)
7.Catching Servo MITSUBISHI Servo Pack,
8.Bag Making Capacity Maximum number of shots (HDPE#15) : 300 shots/min,(CCP#40) : 250 shots/min,
Maximum film speed : 40 m/min *3
9.Machine Size & Weight 1.88m*5.92m*1.5m, 2800KG

.



Optional Accessories

Round hole punching device.

Bag dividing device.

Butterfly hole punching device.

Automatic hot melt coater.

Automatic product outfeed conveyor.

Ultrasonic longitudinal sealing device.

Edge positioning controller (EPC).

Zipper device

Upper and lower line heating device.



Hem sealing device

Solid edge device





Application

 It's available for general side sealing plastic bag, such as OPP bags, hanging Bags, zipper bags, carry bags, book cover, Shirt bags etc.This machine also available for special design.



機 械 規 格 / SPECIFICATION

MODEL


MAX.WIDTH
MAX.LENGTH
CONVERTING THICKNESS
ACCURACY LENGTH(m/m)
SPEED (PCS/MIN)
SERVO MOTOR/KW
HEATER
POWER REQUIRED
DIAMENSION
L * W * H (CM)
MACHINE WEIGHT
SHSS-650 650 mm 600 mm 0.015 - 0.08 mm 1 Max. 250 2.0 KW 2.0 KW 2.2 KW 900*220*200 2050 KG

Bag Making Sizes & Shapes

[ Standard Specifications ]

HK-65V_bag1 Half fold fusion bag making

  • W (Bag width) : 70 to 500mm
  • L (Bag length) :200 to 650mm

[ Using Optional Equipment ]

HK-65V_bag2 Double triangular plate system 2-line bag making

  • W (Bag width) : 70 to 500 mm
  • L (Bag length) : 100 to 300 mm
HK-65V_bag3 Gusset 1-line bag making

  • W (Bag width) : 70 to 500 mm
  • L (Bag length) : 200 to 650 mm
  • G (Gusset fold width) : 30 to 70 mm





Sing Siang Machinery Provide Great Diversity of Plastic Bag Making Machine
