BAGMAKING MACHINERY SOLUTIONS

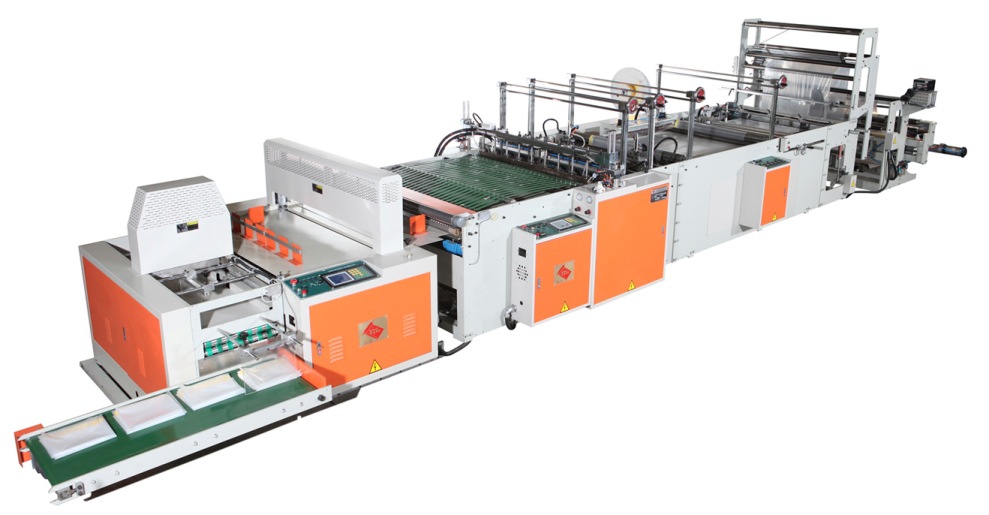

AJSS-50DT

Side Welding Draw Tape Bag Machine

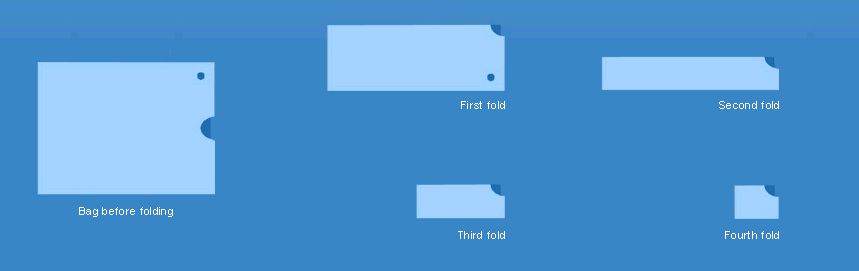

With Folding Machine






AJSS-50DT+4 Fold Folding Machine

AJSS-50DT+5 FoldFoldingMachine

Special Features

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment



 Imported high speed conveyor belt for long service life.






Application

 It's available for general side sealing plastic bag, such as OPP bags, hanging Bags, zipper bags, carry bags, book cover, Shirt bags etc.This machine also available for special design.



SPECIFICATION

MODEL


MAX.WIDTH
MAX.LENGTH
CONVERTING THICKNESS
ACCURACY LENGTH(m/m)
SPEED (PCS/MIN)
SERVO MOTOR/KW
HEATER
POWER REQUIRED
DIAMENSION
L * W * H (CM)
MACHINE WEIGHT
AJSS-42DT 1000 mm 1000 mm 0.015 - 0.2 mm ± 2 Max. 150 3.0 KW 3.5 KW 3.2 KW 450*172*171 2300 KG
AJSS-50DT 1150 mm 1200 mm 0.015 - 0.2 mm ± 2 Max. 90 3.0 KW 4.0 KW 4.0 KW 450*193*171 2450 KG
AJSS-60DT 1150 mm 1400 mm 0.015 - 0.2 mm ± 2 Max. 90 4.4 KW 5.5 KW 5.5 KW 450*219*171 2650 KG





Sing Siang Machinery Provide Great Diversity of Plastic Bag Making Machine
