Specialized In Converting & Packaging Equipment Manufacturing

BAGMAKING MACHINERY SOLUTIONS

Available in 3 Fold , 4 Fold & 5 Fold Function

Model : SHGF

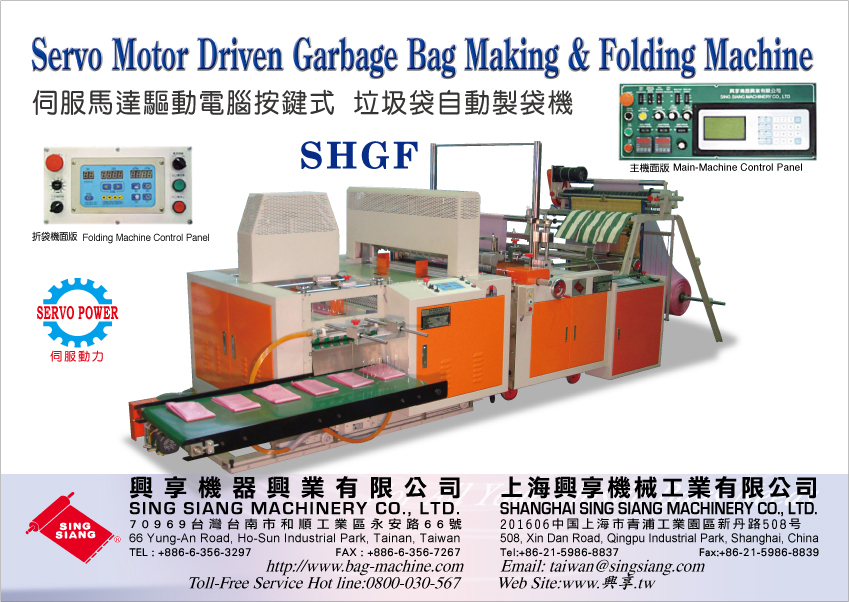

Bottom Weld GARBAGE BAG Making Machine With Automatic FOLDING MACHINE












Special Features

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment




Optional Accessories

Servo Motor Driven Folding Device

 Air Punching Unit

Free Tension Sealing Blade (for Thick Bags)

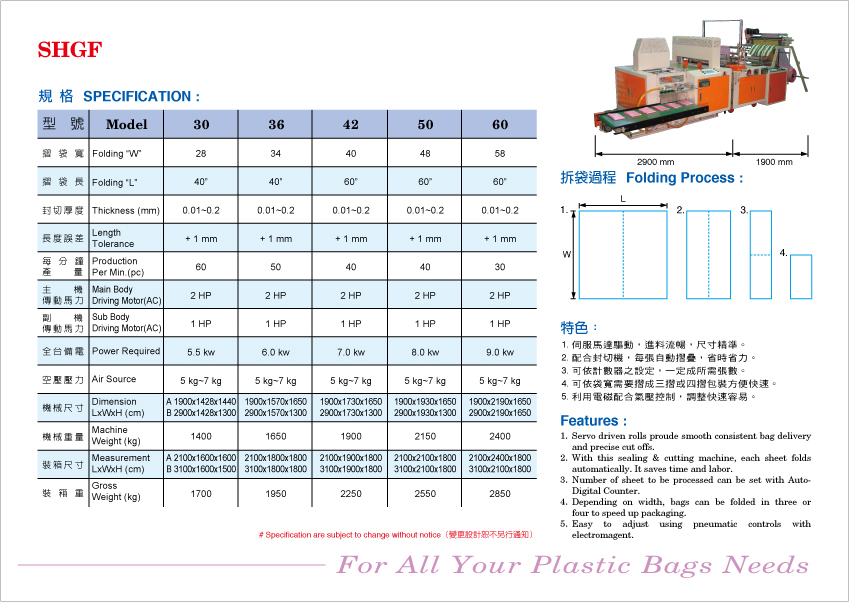

SPECIFICATION

MODEL

 MAX. WIDTH
 		MAX.LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHGF-30 750 mm 1200 mm 0.01 - 0.1 mm ± 1 10 - 65 1.5 KW 2.0 KW 5.0 KW 550*142*144 1700 KG
SHGF-36 890 mm 1200 mm 0.012-0.15 mm ± 1 10 - 65 2.0 KW 2.2 KW 5.5 KW 6420*157*165 1800 KG
SHGF-42 1050 mm 1200 mm 0.012-0.15 mm ± 1 10 - 65 3.0 KW 2.5 KW 6.0 KW 640*173*165 2000 KG
SHGF-50 1250 mm 1200 mm 0.012-0.15 mm ± 2 10 - 65 4.4 KW 3.0 KW 6.5KW 640*193*165 2100 KG
SHGF-60 1500 mm 1200 mm 0.035-0.15 mm ± 2 10 - 65 4.4 KW 3.80 KW 7.0 KW 640*219*165 2300 KG




Sing Siang Machinery Provide Great Diversity of Plastic Bag Making Machine
