Bag on Roll , Sing Siang Machinery, C Fold , M Fold Coreless Bag on Roll Machine

Specialized In Converting & Packaging Equipment Manufacturing

BAGMAKING MACHINERY SOLUTIONS

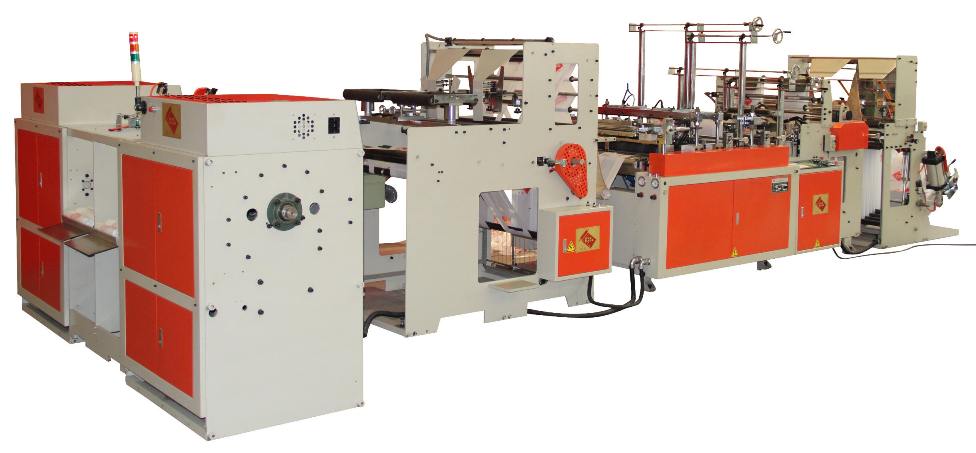

AJ-300MUBR Fully Automatic Multifunctional Bags on Roll Machine

MODEL：2013


Star Sealed Bag on Roll	Star Sealed (Bottom View)	Bottom Sealed Gusseted


T-Shirt Bag on Roll	Star Sealed Tie-Handel T-Shirt Bag on Roll	Star Sealed Wave-Top

2 Lines Fully Automatic Paper Core Winding Station

SPECIFICATION

MODEL

MAX.WIDTH

MAX.LENGTH

CONVERTING THICKNESS

ACCURACY LENGTH(m/m)

SPEED (Meter/MIN)

SERVO MOTOR/KW

HEATER

POWER REQUIRED

DIAMENSION
L * W * H (CM)

MACHINE WEIGHT

AJ300MUBR

300* 2 Track

285~1200 mm

0.02 - 0.26 mm

± 1

Max. 100M

7.0 KW

200 W

2.2 KW

700*340*185

2500 KG

Main Furtures
	Sealing & Perforation Integrated in Same Unit
	Long time for sealing and low sealing temperature
	Easy measure any different size
	High efficiency production
	Core changing automatic
	The tension of each line is controller independently & automatically
