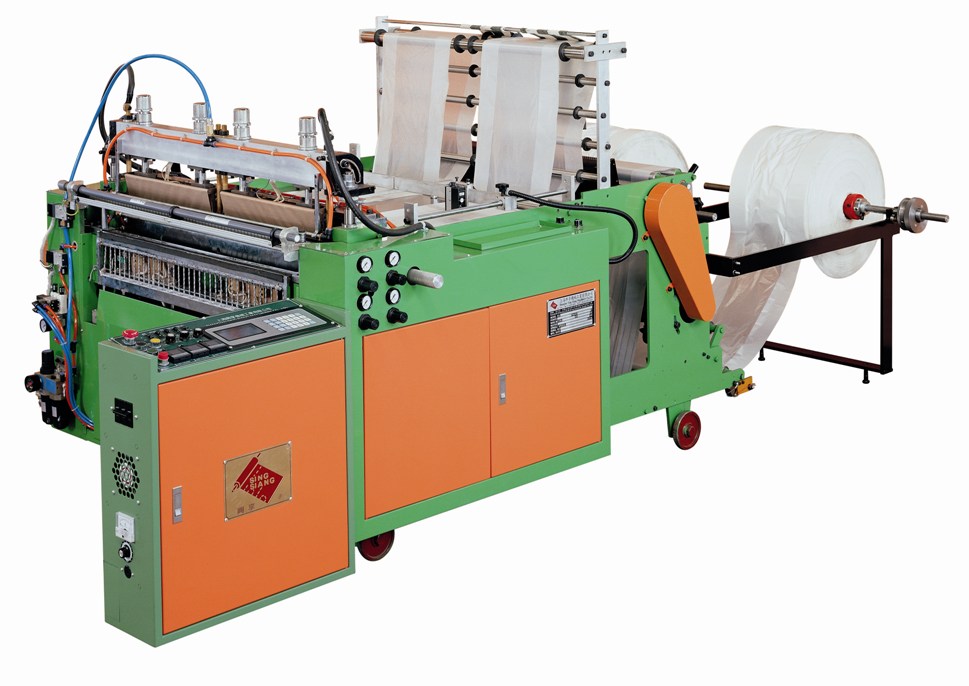

SHVS-36 Economic Semi Automatic T-Shirt Bag Making Machine
SHVS-36DA Dual Servo


Main Furtures

This is a special machine to make T-shirt bag by heat cutting
This machine operates simultaneously in 2 different sizes with 2 photo cells for printing bags.
High speed 2 lines operation. Capacity: 2 Lane x 160 PCS/min.


Standard Part List
 Dual Servo Control Panel (Made In Taiwan)  "FUKUTA" 2H 4P AC Motor * 1 PCS
 YASKAWA Servo Pack ( 2.0 KW) * 2 PCS  Janpanes Made "KOGANEI" Pneumatic Air Valve * 1 SET
 Germen Made "SICK" KT5G Printing Sensor * 2 PCS   "Air Tac"  Pneumatic Air Valve * 1 SET
 500W DC Motor  * 2 PCS   Independent Temperature Controller * 3 SET
 "DELTA" 2.2KW AC Motor Driver * 1 PCS   Hot Pins & Cold Pins
 "FUKUTA" 1H 6P AC Motor * 2 PCS


SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHVS-22 500 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 140 3.0 KW 2.0 KW 2.2 KW 710*142*171 1050 KG
SHVS-30 700 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 150 4.4 KW 3.0 KW 3.2 KW 710*172*171 1300 KG
SHVS-30D 330 mm * 2L 700 mm 0.008 - 0.035 mm ± 1 Max. 150 3.0 KW 3.5 KW 4.0 KW 710*193*171 1450 KG
SHVS-36 800 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 130 3.0 KW 4.0 KW 5.5 KW 710*219*171 1550kG
SHVS-36D 390 mm * 2l 700 mm 0.008 - 0.035 mm ± 1 Max. 160 3.0 KW 5.5 KW 5.5 KW 710*219*171 1650 KG


Sing Sinag Machinery Provide Great Diversity of Plastic Bag Making Machine
