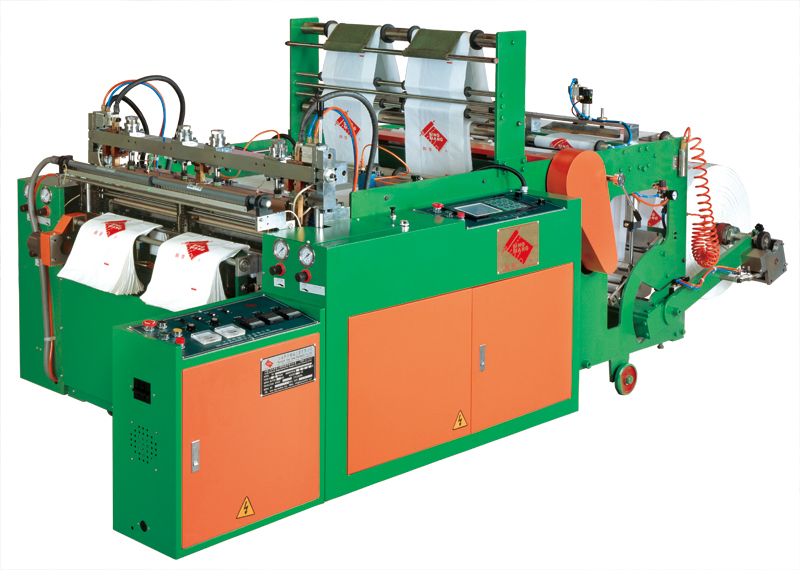

SHVS-900-2H High Speed Semi Automatic T-Shirt Bag Making Machine
SHVS-900-2H

230 PCS/ Min. * 2 Line



Main Furtures

This is a special machine to make T-shirt bag by heat cutting
This machine operates simultaneously in 2 different sizes with 2 photo cells for printing bags.
High speed 2 lines operation. Capacity: 2 Lane X 230 PCS/min.
Automatic Film Elevator, Max. plastic roll dia. is 1000 mm
SEALING KNIFE "TURNOVER" DEVICE Easy for clean the Sealing Knife.



Standard Part List
 Dual Servo Control Panel  "FUKUTA" 2H 4P AC Motor * 1 PCS
 YASKAWA Servo Pack ( 3.0 KW) * 2 PCS  Janpanes Made "KOGANEI" Pneumatic Air Valve * 1 SET
 Germen Made "SICK" KT5G Printing Sensor * 2 PCS   "Air Tac"  Pneumatic Air Valve * 1 SET
 "DELTA" 0.75KW AC Motor Driver * 2 PCS   Independent Temperature Controller * 3 SET
 "DELTA" 2.2KW AC Motor Driver * 1 PCS   Sealing Knife Shifting Device
 "FUKUTA" 1H 6P AC Motor * 2 PCS   Hot Pins & Cold Pins


SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHVS-500 500 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 210 3.0 KW 2.0 KW 2.2 KW 710*142*171 1050 KG
SHVS-900-2H 380 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 230 3.0 KW 5.5 KW 5.5 KW 710*219*171 1650 KG
