SHPF  Semi Automatic C Fold Coreless Bag on Rolls





2012 Edition C Fold Bag on Roll (With Core)





SHPF-30C SEMI AUTO. C FOLD BAG ON ROLL (WITHCORE)









SHPF-30 SEMI-AUTO. C FOLD BAG ON ROLL MACHINE

SHPF-30+HRC AUTO. C FOLD BAG ON ROLL MACHINE


Main Furtures

Patented Invention On Multi-Functional Folding Device.  Stable, Convenient, Efficient

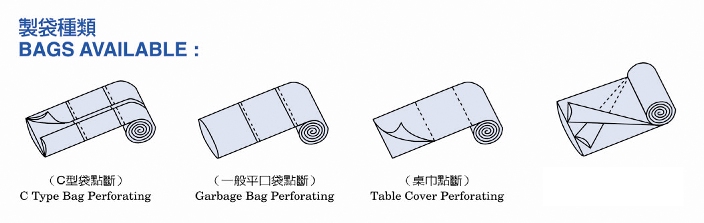

Available for Type Folding
Available in Coreless Production and With Core Production.
Very easy for Roll Changing
Bottom Sealing Type Bag on roll, it is no Gap at GUSSET Point, No Rick for leaking



機 械 規 格 / SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHPF-30 700mm 760mm 0.008-0.12 ± 1 30 ~ 100 3.0 KW 3.0 KW 3.2 KW 450*125*171 1350 KG
SHPF-36 850mm 1200mm 0.008-0.12 ± 1 30 ~ 100 3.0 KW 4.0 KW 5.5 KW 450*140*171 1500 KG
SHPF-42 1000mm 1200mm 0.008-0.12 ± 1 30 ~ 100 3.0 KW 4.0 KW 6.0KW 450*155*171 1650 KG
SHPF-50 1210mm 1200mm 0.008-0.12 ± 1 30 ~ 80 4.4 KW 4.5 KW 6.3KW 450*180*171 1800 KG

Sing Sinag Machinery Provide Great Diversity of Plastic Bag Making Machine
