SHPF-36-TSCF

無心自動換捲 三折式點斷背心袋 (日本山字垃圾袋)專用制袋機 + 貼標裝置

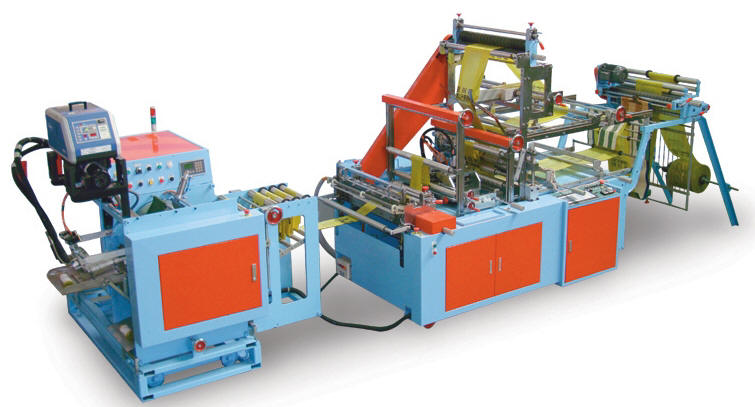

Fully Auto. C Fold Coreless T-Shirt Bag on Roll With Auto. Labeling Machine










Main Furtures

Patented Invention On Multi-Functional Folding Device.  Stable, Convenient, Efficient
Available in Coreless Production and With Core Production.
Very easy for Roll Changing
Bottom Sealing Type Bag on roll, it is no Gap at GUSSET Point, No Rick for leaking



機 械 規 格 / SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHPF-30 700mm 760mm 0.008-0.12 ± 1 30 ~ 100 3.0 KW 3.0 KW 3.2 KW 450*125*171 1350 KG
SHPF-36 850mm 1200mm 0.008-0.12 ± 1 30 ~ 100 3.0 KW 4.0 KW 5.5 KW 450*140*171 1500 KG
SHPF-42 1000mm 1200mm 0.008-0.12 ± 1 30 ~ 100 3.0 KW 4.0 KW 6.0KW 450*155*171 1650 KG
SHPF-50 1210mm 1200mm 0.008-0.12 ± 1 30 ~ 80 4.4 KW 4.5 KW 6.3KW 450*180*171 1800 KG

Sing Sinag Machinery Provide Great Diversity of Plastic Bag Making Machine
