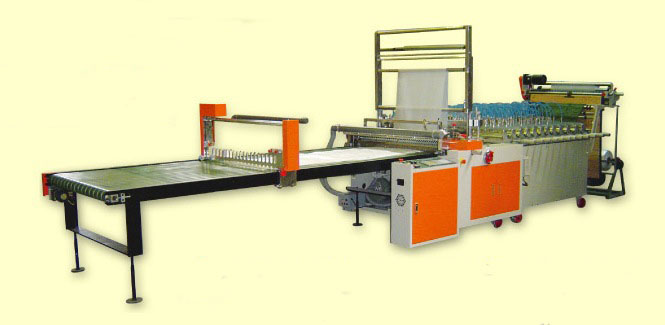

SHCG-42MH

 Bottom Sealing Bag Making Machine With Multi Puncher




Special Features

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment

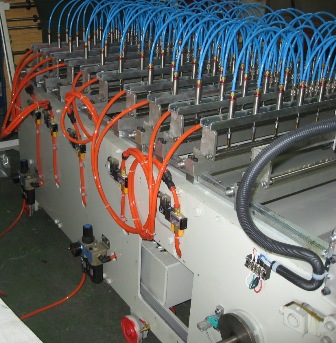

 Cylinder Type Air Puncher, flexible, unlimited,replaceable, cost efficient




Optional Accessories





機 械 規 格 / SPECIFICATION

MODEL


 MAX.WIDTH
 		MAX.LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHCG-36 MH 850 mm 3000 mm 0.002 - 0.02 mm ± 2 Max. 100 3.0 KW 2.4 KW 3.2 KW 700*160*200 1650 KG
SHCG-42 MH 1000 mm 3000 mm 0.002 - 0.02 mm ± 2 Max. 100 3.0 KW 2.6KW W 3.5 KW 700*175*200 1750 KG
