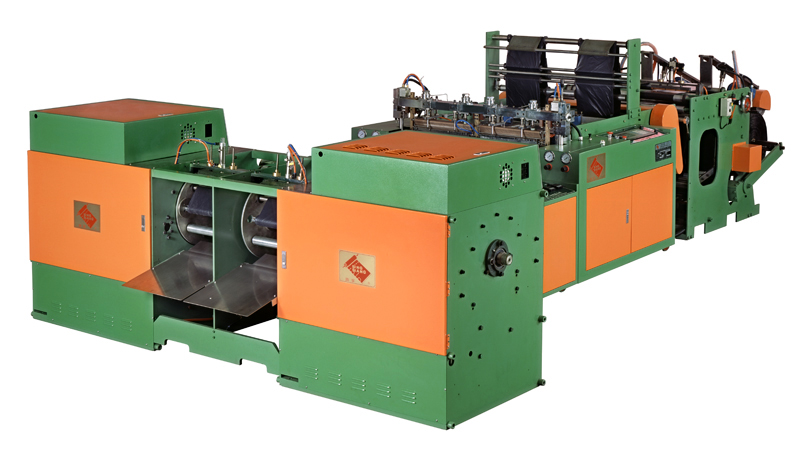

Model : AJ-900

High Speed 2 Lane Fully Automatic Bottom Sealing Machine for Coreless Bag on Rolls

100M/Min Non Stop

Available For 2 Lane Printed Bag Production



Available For 2 Lane Printed Bag Production



Specail Specification

Newly designed big monitor Servo feeding control system

Equipped with multi auto tension control to maintain the stability of the film roll.

Inverter Motor Tension Control Unwinder

 Automatically stop when running out of film

Automatic film feeding, coordination free from tension adjustment

 Automatically stop when film feeding blocks or bags jam

Automatic film feeding, coordination free from tension adjustment

 Automatically stop when color scanning misses

 A/B Line producing different length bag, counter independent




Optional Equipment

 In Line Star-Sealed Bag Folding Device



 SPECIFICATION

MODEL

MAX.WIDTH MAX.LENGTH CONVERTING THICKNESS ACCURACY LENGTH(m/m) SPEED (PCS/MIN) SERVO MOTOR/KW HEATER POWER REQUIRED DIAMENSION
L * W * H (CM)
 		 MACHINE WEIGHT
AJ-900 IA 350 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 100M 3.0 KW 4.0 KW 6.5 KW 550*157*171 3500 kg



Model : AJ-900IA

Product Category : Plastic Bag Making Machine

Product Type : Fully Automatic 2 Line Coreless Bag on Roll Making Machine

Manufacture : Sing Sian Machinery
