Specialized In Converting & Packaging Equipment Manufacturing

BAGMAKING MACHINERY SOLUTIONS

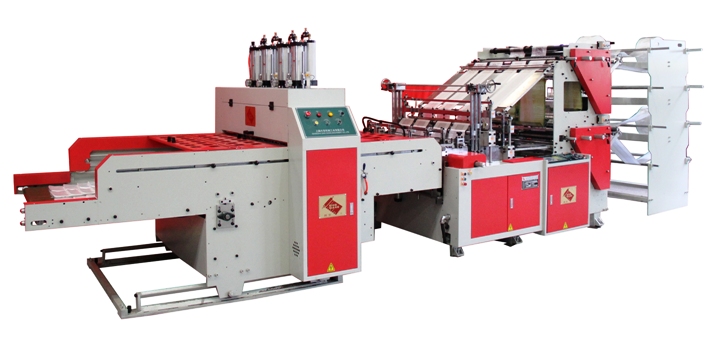

SHTF-42-1S8L-PU Double Layer (8 Lanes)

Bottom Weld Converter For T-shirt Bag Production

# Special Note Max Production Width : 200MM * 8 Lanes

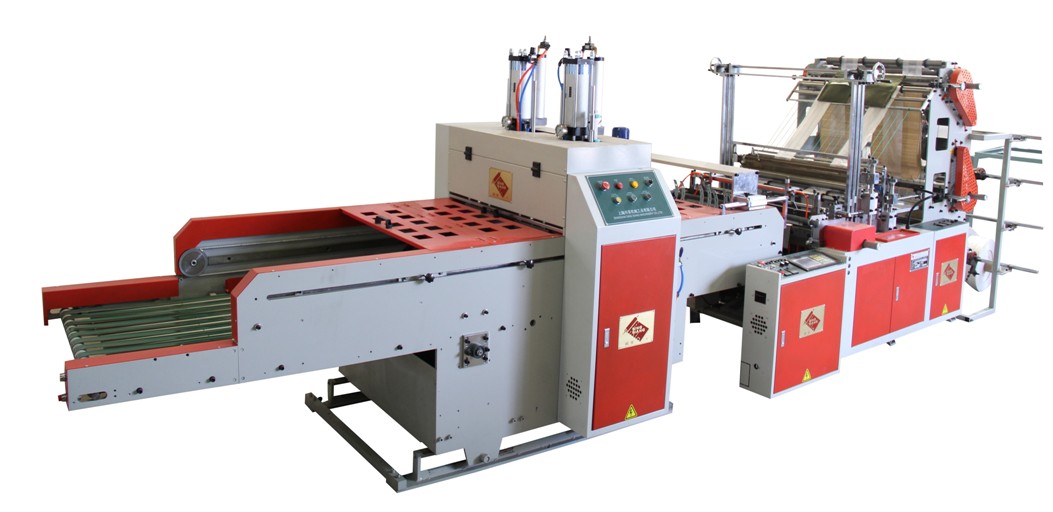

SHTF-36-1S4L-PU Double Layer (4 Lanes)

Bottom Weld Converter For T-shirt Bag Production



# Special Note Max Production Width : 380MM * 4 Lanes










Special Features

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment




Optional Accessories

Dual Servo Dual Printing Senson System

 Perforating Bags Production Device

 Free Tension Sealing Blade (for Thick Bags)

 Bottom Sealing T-shirt Bag making Device

 Air Punching Unit

 Glove Bag Sealing Device

 Conveyor Stacker

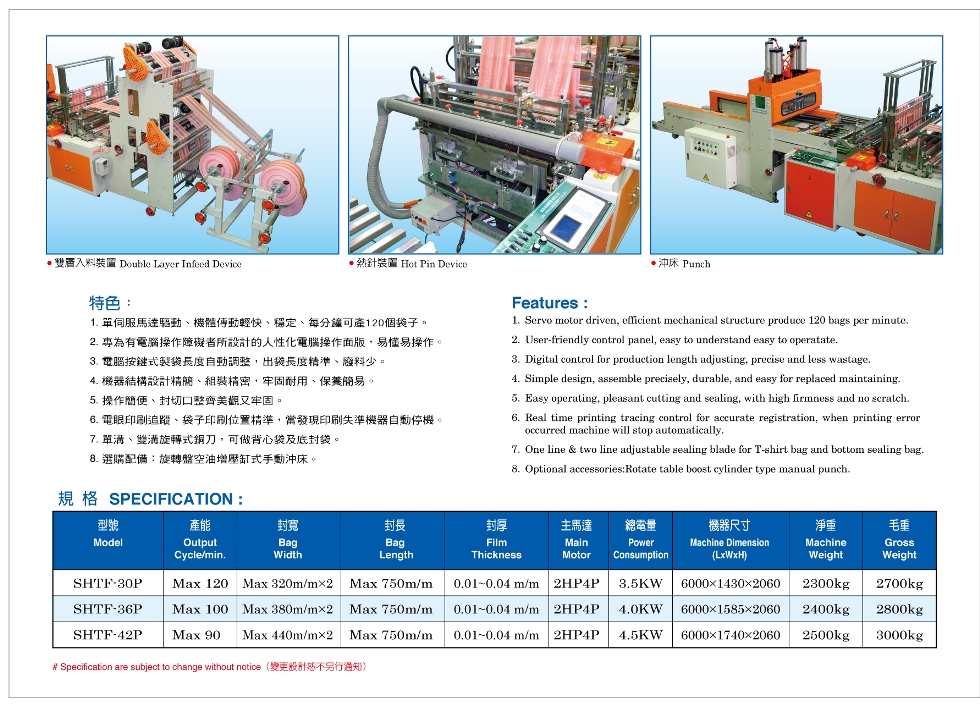

SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX.LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHTF-30T 330 mm 1200 mm 0.01 - 0.1 mm ± 1 10 - 120 1.5 KW 2.0 KW 4.5 KW 330*142*144 1000 KG
SHTF-36T 380 mm 1200 mm 0.012-0.15 mm ± 1 10-110 2.0 KW 2.2 KW 5.0 KW 420*157*165 1100 KG
SHTF-42T 450 mm 1200 mm 0.012-0.15 mm ± 1 10 - 95 3.0 KW 2.5 KW 5.5 KW 420*173*165 1200 KG











Sing Siang Machinery Provide Great Diversity of Plastic Bag Making Machine
