Specialized In Converting & Packaging Equipment Manufacturing

BAGMAKING MACHINERY SOLUTIONS

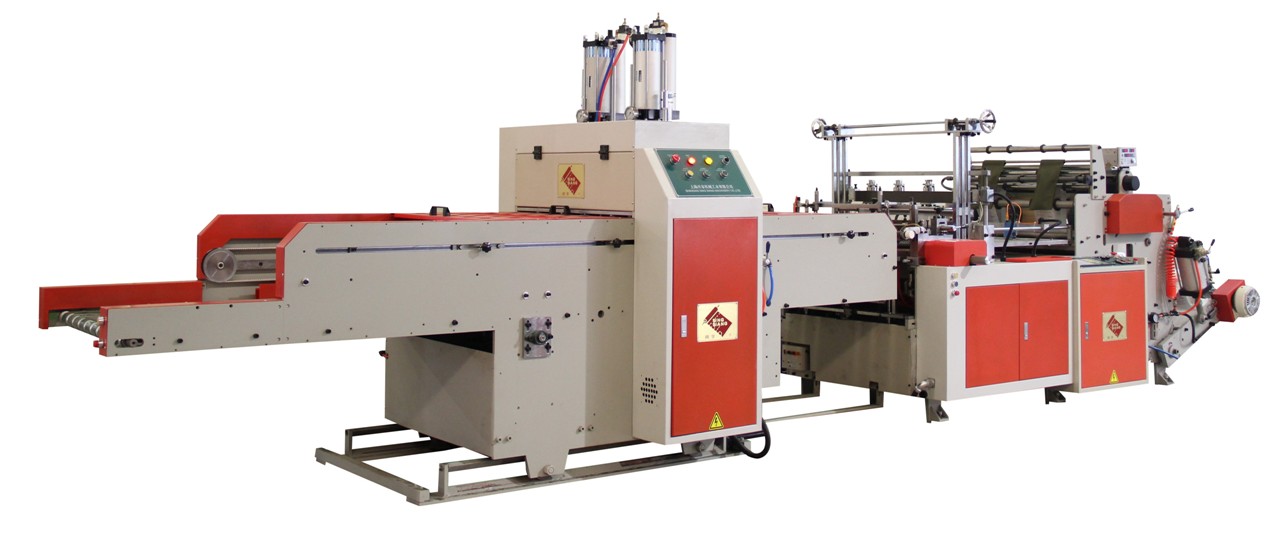

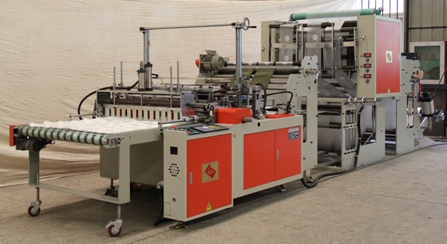

AJCG - 36DP Bottom Weld Sealing Bag Making Machine With Punching Station



Type One : Tension Free Bottom Sealing Convertor


Type Two : Standard Bottom Sealing Convertor


Heat Slitting Blade


Web Guide Device








Special Features

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment



 Cylinder Type Air Puncher, flexible, unlimited,replaceable, cost efficient




Optional Accessories





機 械 規 格 / SPECIFICATION

MODEL


MAX.WIDTH
MAX.LENGTH
CONVERTING THICKNESS
ACCURACY LENGTH(m/m)
SPEED (PCS/MIN)
SERVO MOTOR/KW
HEATER
POWER REQUIRED
DIAMENSION
L * W * H (CM)
MACHINE WEIGHT
AJCG1100 1000 mm 1200 mm 0.002 - 0.02 mm ± 2 Max. 120 3.0 KW 2.4 KW 3.2 KW 700*160*200 1650 KG

Sing Siang Machinery Provide Great Diversity of Plastic Bag Making Machine
