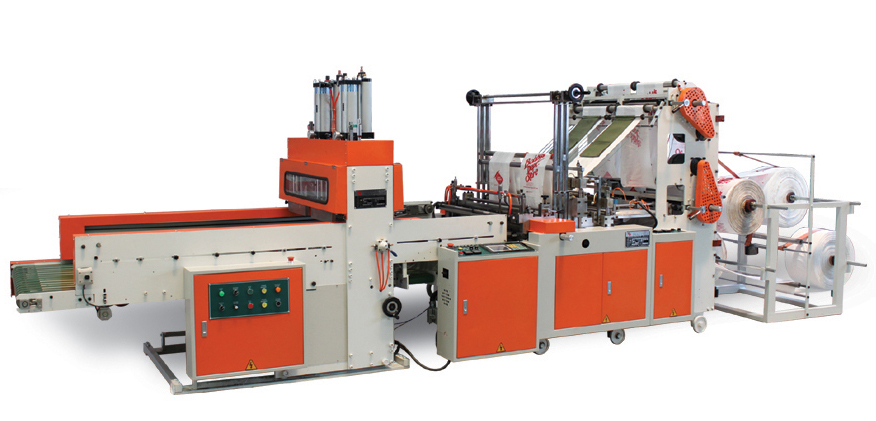

SHTF-36A Fully Automatic High-Speed Double Layer (4 Lanes)

Bottom Weld Converter For T-shirt Bag Production















Special Features

Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

Efficient output, less man power required

Automatically stop when The temperature not reaching setting.

Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

Pleasant Cutting and Sealing, with high firmness





Cutting Blade is very lasting, and easy for adjustment




Optional Accessories

Dual Servo Dual Printing Senson System

 Perforating Bags Production Device

 Free Tension Sealing Blade (for Thick Bags)

 Bottom Sealing T-shirt Bag making Device

 Air Punching Unit

 Glove Bag Sealing Device

 Conveyor Stacker



PECIFICATION

MODEL

 MAX.WIDTH
 		MAX.LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHTF-30 330 mm 1200 mm 0.01 - 0.1 mm ± 1 10 - 120 1.5 KW 2.0 KW 4.5 KW 330*142*144 1000 KG
SHTF-36 380 mm 1200 mm 0.012-0.15 mm ± 1 10-110 2.0 KW 2.2 KW 5.0 KW 420*157*165 1100 KG
SHTF-42 450 mm 1200 mm 0.012-0.15 mm ± 1 10 - 95 3.0 KW 2.5 KW 5.5 KW 420*173*165 1200 KG
