SHCG BOTTOM SEALING BAG MAKING MACHINE



Year 2011 Edition SHCG-50 With Tension Free Sealing Blade

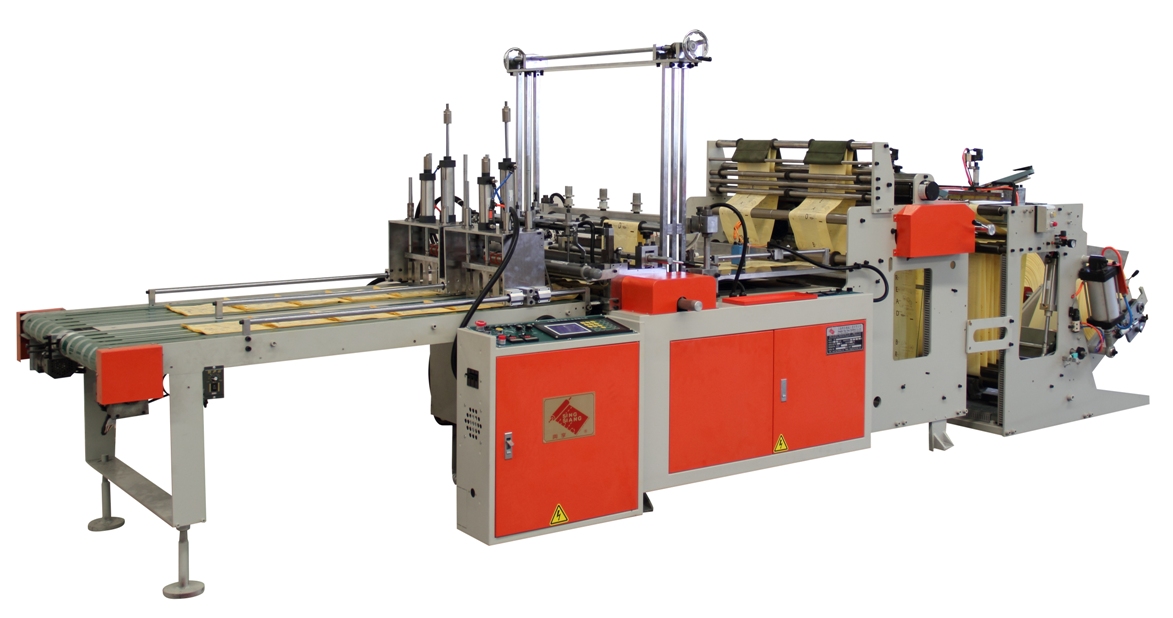

Year 2013 Edition AJCG-36D With （Automatic Unwinder is Optional）







Special Features

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment

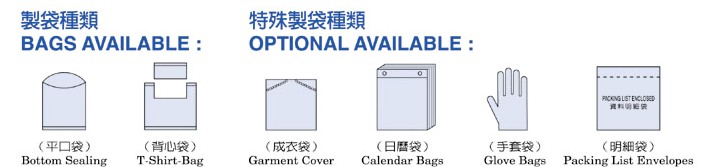

Optional Accessories

Dual Servo Dual Printing Senson System

 Garment Bags Sealing Device

 Extra Rear Feeding Rollers

 Perforating Bags Production Device

 Free Tension Sealing Blade (for Thick Bags)

 Bottom Sealing T-shirt Bag making Device

 Air Punching Unit

 Glove Bag Sealing Device

 Conveyor Stacker










SPECIFICATION

MODEL

 MAX. WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHCG-20 480 mm 1200 mm 0.009 - 0.1 mm ± 1 10 - 120 1.0 KW 1.5 KW 2.8 KW 330*117*144 700 KG
SHCG-24 580 mm 1200 mm 0.009 - 0.1 mm ± 1 10 - 120 1.0 KW 1.8 KW 3.5 KW 330*127*144 800 KG
SHCG-30 750 mm 1200 mm 0.01 - 0.1 mm ± 1 10 - 120 1.5 KW 2.0 KW 4.0 KW 330*142*144 900 KG
SHCG-36 890 mm 1800 mm 0.012-0.15 mm ± 1 10-110 2.0 KW 2.2 KW 4.5 KW 420*157*165 1000 KG
SHCG-42 1050 mm 1800 mm 0.012-0.15 mm ± 1 10 - 95 3.0 KW 2.5 KW 5.0 KW 420*173*165 1100 KG
SHCG-50 1250 mm 3000 mm 0.012-0.15 mm ± 2 10 - 80 4.4 KW 3.0 KW 5.5KW 420*193*165 1200 KG
SHCG-60 1500 mm 3000 mm 0.035-0.15 mm ± 2 10 - 70 4.4 KW 3.80 KW 6.0 KW 420*219*165 1300 KG
SHCG-75 1880 mm 4000 mm 0.035-0.15 mm ± 2 10 - 50 4.4 KW 4.3 KW 6.8 KW 420*254*165 1400 KG
SHCG-90 2250 mm 4000 mm 0.035-0.15 mm ± 2 10 - 40 4.4 KW 5.0 KW 7.5 KW 450*292*180 1650 KG
SHCG-120 3000 mm 5000 mm 0.035-0.15 mm ± 2 10 - 30 4.4 KW 6.5 KW 8.2 KW 450*368*180 2100 KG

Model : SHCG

Product Category : Plastic Bag Making Machine

Product Type : Bottom Weld Bag Machine

Manufacture : Sing Sian Machinery

Sing Sinag Machinery Provide Great Diversity of Plastic Bag Making Machine
