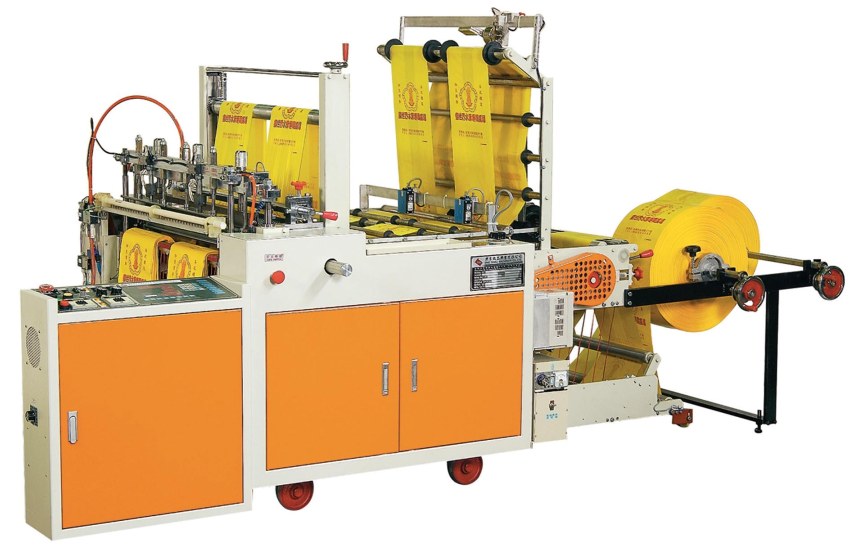

SHVS-30 Semi Automatic T-shirt Bag Machine Single Servo Dual Printing Sensor

SHVS-30  Main Feature Single Servo Motor Driven Dual Printing Bag Production








Main Furtures

This is a special machine to make T-shirt bag by heat cutting
This machine can produce Large Bag up to 680mm Width, or 330mm Width * 2 Line.
High speed 2 lines operation. Capacity: 2 Lane x 140 pcs/min.


Standard Part List
 Large Screen Servo Control Panel  "FUKUTA" 2H 4P AC Motor * 1 PCS
 YASKAWA Servo Pack ( 3.0 KW) * 1 PCS  Janpanes Made "KOGANEI" Pneumatic Air Valve * 1 SET
 Germen Made "SICK" KT5G Printing Sensor * 2 PCS   "Air Tac"  Pneumatic Air Valve * 1 SET
 "DELTA" 2.2KW AC Motor Driver * 1 PCS   Independent Temperature Controller * 3 SET
 500W DC Motor Driver for Unwind Roller * 2 PCS    Hot Pins & Cold Pins



機 械 規 格 / SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHVS-30SS

680 mm * 1

330mm * 2

 700 mm 0.008 - 0.035 mm ± 1 Max. 140 3.0 KW 3.0 KW 3.2 KW 300*172*171 950 KG
SHVS-36SS 850 mm *1

370mm * 2

700 mm 0.008 - 0.035 mm ± 1 Max. 120 3.0 KW 4.0 KW 5.5 KW 300*219*171 1100kG
