1.) Continuously sealing by turning drum

2.) Long time for sealing and low sealing temperature

3.) Easy measure any different size

4.) High efficiency production

5.) Core changing automatic

6.) The tension of each line is controller independently & automatically

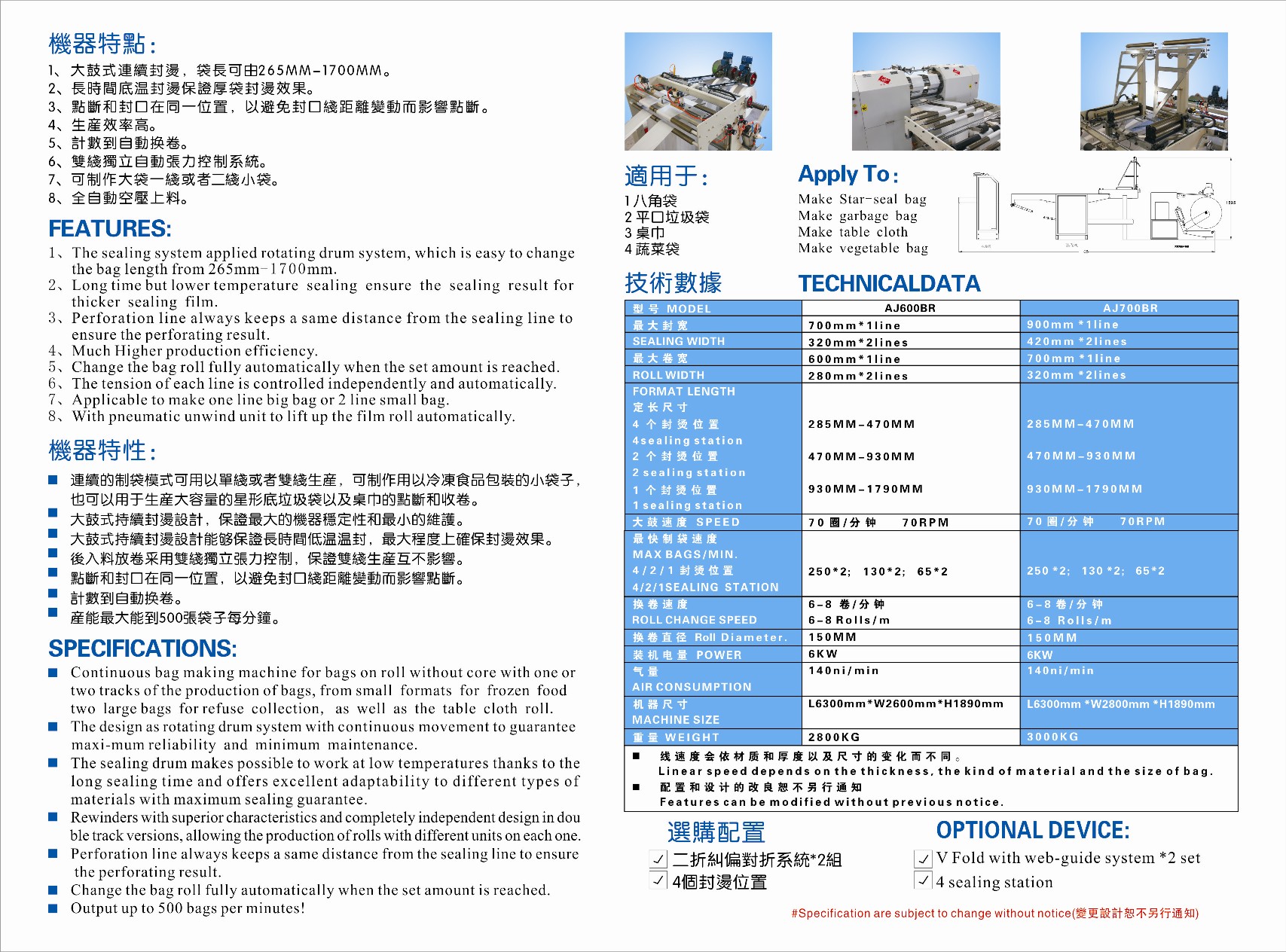

 SPECIFICATION

MODEL


 MAX.WIDTH
 		MAX.LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (Meter/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
AJ-600BR 650*1 300*2 285~1840 mm 0.02 - 0.26 mm ± 1 Max. 100M 7.0 KW 200 W 2.2 KW 700*340*185 2500 KG

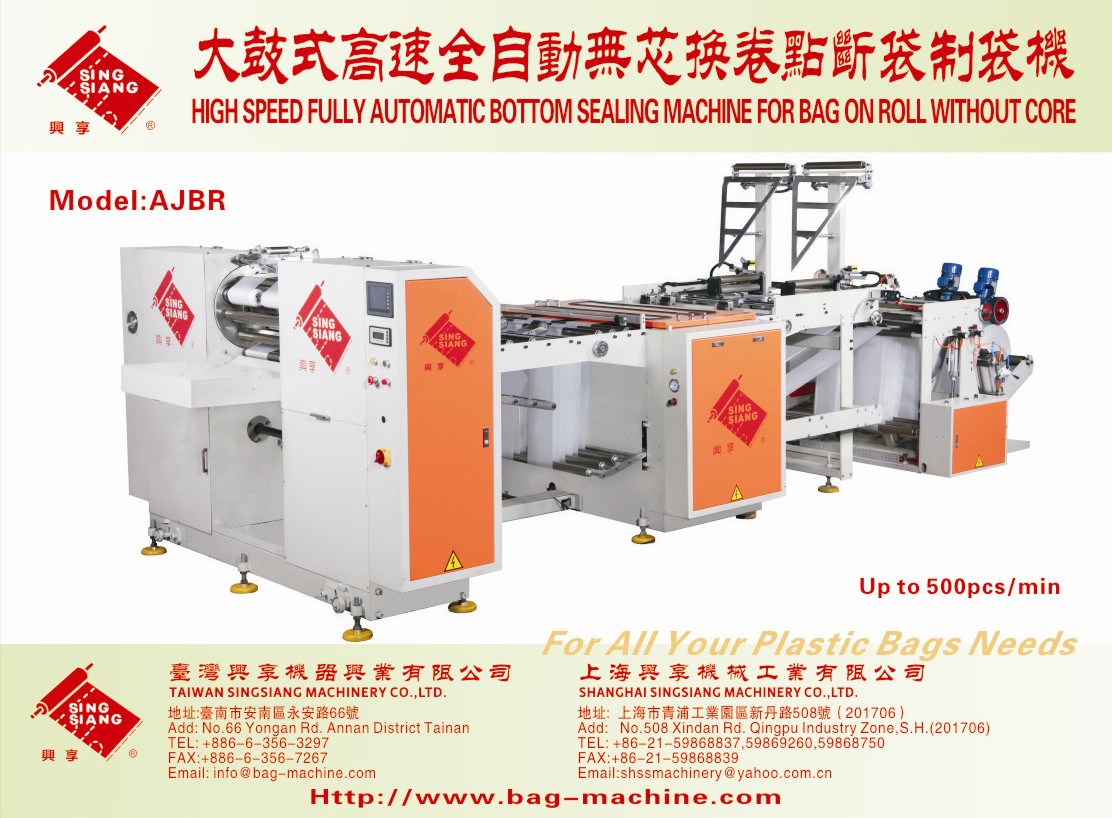

AJ-600BR

High Speed Fully Automatic Bottom Sealing Machine

for BAG-ON-ROLL  ( Drum Sealing Type, Coreless)
